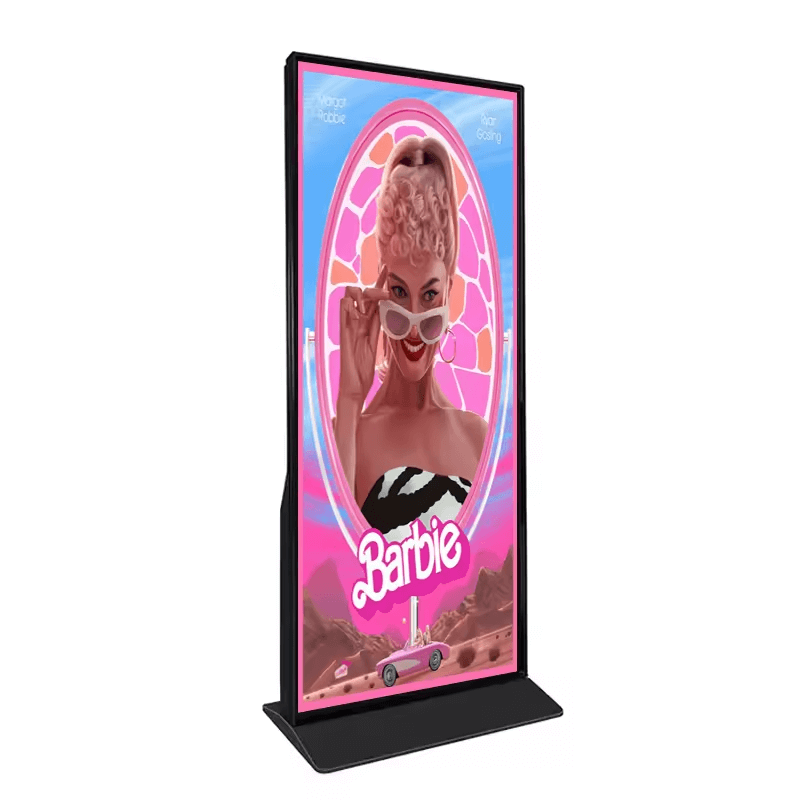

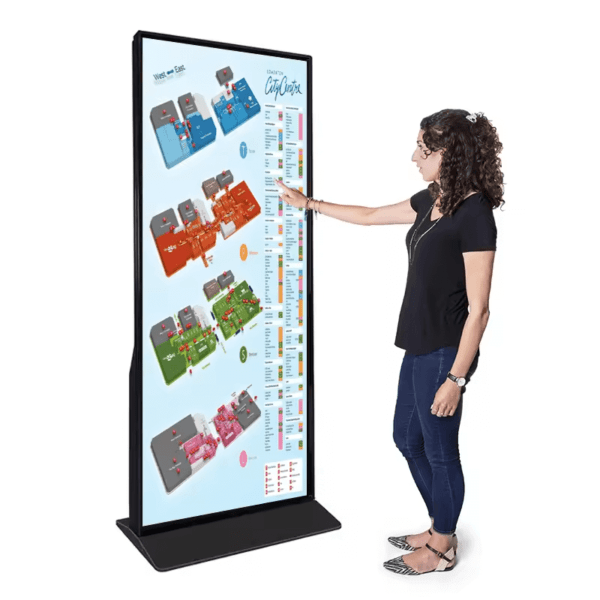

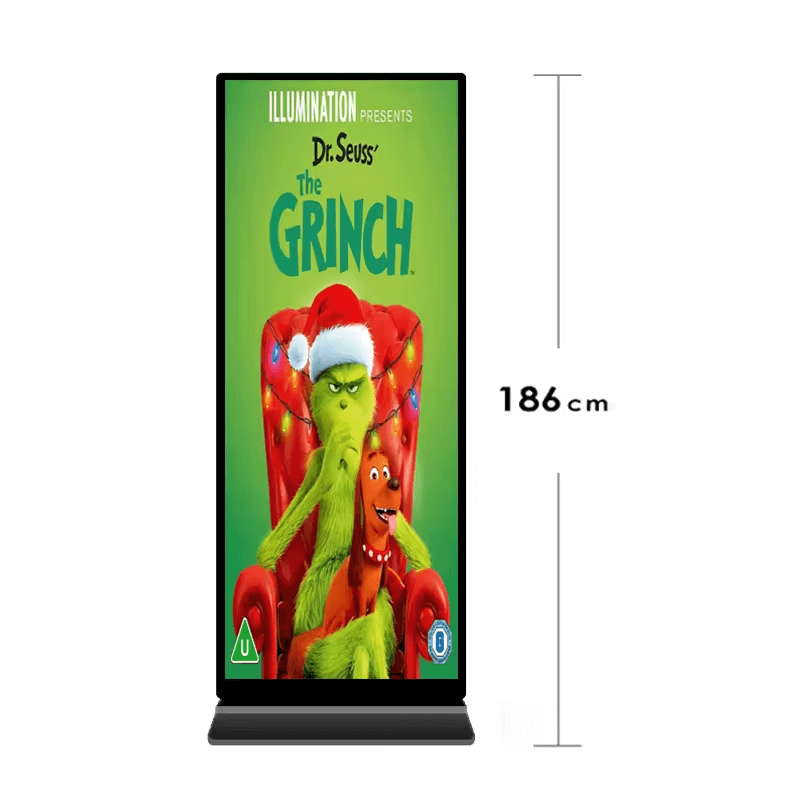

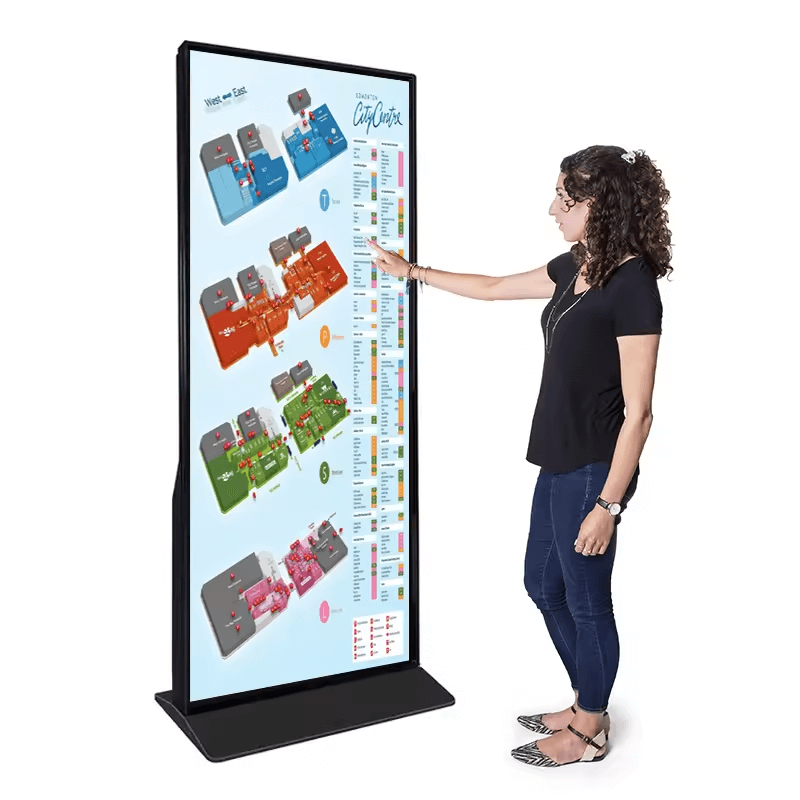

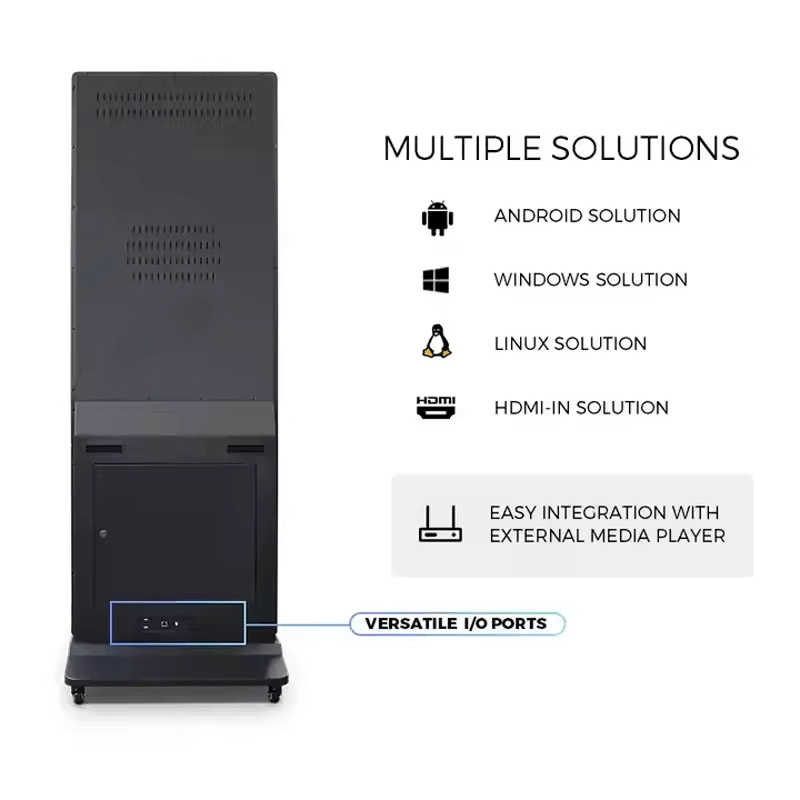

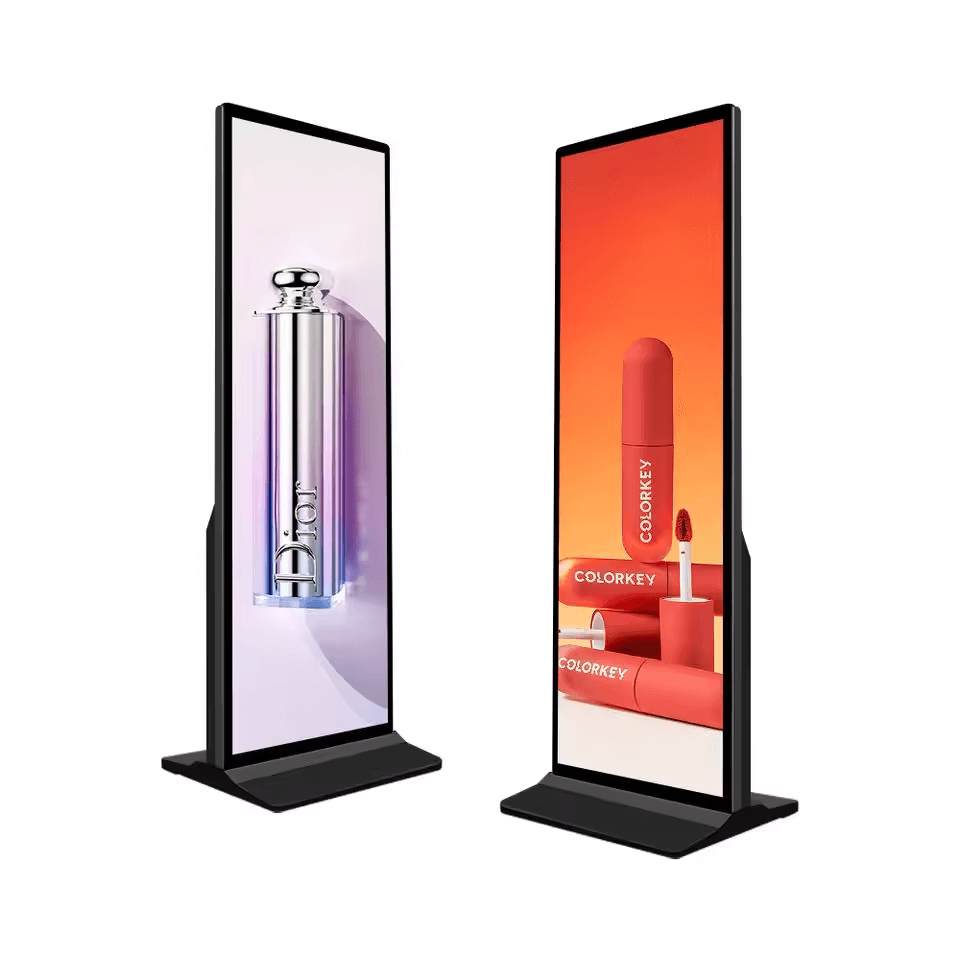

85 inch 4K UHD IPS Floor Standing Kiosk Digital Signage

Whether it’s for flight information, advertising, or directional guidance, this 85-inch Floor Standing digital signage excels, delivering exceptional performance and visual experiences.

ENQUIRY!

SKU: FDS8502 Categories: Floor Standing Digital Signage, Indoor Digital Signage Tags: 4K, Android, Floor Standing

Custom Branding 85 Inch Indoor Floor Stand Vertical Display Video Players Android Touch Screen Advertising Kiosk LCD Digital Signage

Key Features:

High Brightness: A remarkable 700 nits of brightness ensures clear visibility even in well-lit airport environments.
High Resolution: The high-resolution screen displays images and videos with vivid detail.
Sturdy and Durable: Designed to withstand high traffic in airports, ensuring longevity.
Multimedia Support: Supports various media formats, including images, videos, real-time information, and advertisements.
Remote Management: Effortlessly manage and update content via the network, keeping flight information and announcements current.

Production Specification

Parameters
Available screen size: 32″43″49″55″ 65″ 75″85″98″110″ (Please request dimensional drawings and other dimensions from online customer service)
Display	Backlight Type	D-LED/E-LED
	Screen Brand	LG/B OE and other original factory original package brand new ultra-clear LED screen
	Resolution	19201080 /38402160 ( 75 inches and above)
	Viewing Angle	178 degrees (H):178 degrees (V)
	Brightness	350cd/m2
	Response Time	4ms
	Color Depth	16.7M
	Scanning Frequency	50-60Hz
	Backlight	LED backlight
Parameters	CPU	RK3568, Quad-core 64-bit Cortex-A55, up to 2.0GHz Quad-core Mali-G52 2EE, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance 2D accelerated hardware NPU: support 0.8T power
	Memory	2GB
	Built-in memory	32GB
	Operating System	Android 11.0
	Format Support	Image Rotation: Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation. Audio: MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format Video: H.264,VP8,RV,WMV,AVS,H.263,MPEG4 and other video formats 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash 10.1 playback
	connector	1-channel USB 2.0, 1-channel USB 3.0, 1-channel type-c
	network card	RJ45 interface with Ethernet support. wifi module with Wi-Fi 802.11b/g/n protocol support.
	sound field (in a room or theater)	3D stereo sound output power 2*8W
	Other Functions	Supports timed power on/off
Touch Screen（optional）	Touch method	Infrared true 20-point touch
	touch surface	Ultra-thin, ultra-white tempered glass, light transmittance of more than 95 percent
	Touch Resolution	32767*32767
	service life	Single click touch life of over 60 million times
	touch panel	Any opaque object, ≥5mm
	response time (technology)	≤10ms
	lightfastness	≥100000LUX
	operating system	WINDOWS7,8,Android supports multi-point; WIN XP,MAC OS,Linux supports single-point.
	electricity supply	Single USB power supply
	Software Support	Supports TUIO protocol, WINDOWS Multi-point protocol
Power Supply	Voltage Range	Input:AC100-220V
Environment	Operating Temperature	0℃—45℃
	Working Humidity	20%-80%RH
	Storage Temperature	-20℃—60℃
	Storage Humidity	10%-75%RH
Structural parameters	Overall Size	Please ask for size chart from online customer service
	Net weight of the whole machine	Please request from online customer service
	Body	High-grade black tempered glass on the front, high-quality cold-rolled plate for the body, and baking paint process
Other	After-Sales Service	The whole machine comes with 1-year free warranty and lifetime maintenance. 24-hour after-sales hotline
	Transportation	logistics
	Accessories	Power cord, wall-mounted plate, warranty card, manual, certificate
	Certified Product	CCC, China Energy Conservation Certification, Quality Inspection Report, C E, FCC, ROHS

Standard VS WiFi version

They share same hardware components, however Standard kiosk only works in Stand-alone (USB) mode, WiFi kiosk can switch between Network Mode and Stand-alone Mode.

Standard-alone Mode:

1.Sliding through media contents from USB drive.
2.Built in 15 split-screen templates.
3.Power timer: 4 groups power on/off each for every day or Monday-Sunday
4.Transitions effects/speeds, font size/color/position are changeable.
5.Playback in copied / numerical order.

Network Mode: (WiFi version only)

Create and schedule presentations with free cloud system.
Publish them to poster displays via WiFi/LAN .
Real-time monitor and admin from any network enable computer.

Packing & Delivery

Wooden crates are a type of cargo packaging typically used for shipping heavy or oversized cargo. They are made of wood, often plywood or lumber, and are held together with nails, screws, or bolts. Wooden crates can be customized to fit the dimensions of the shipped item and we often use for our digital signage displays product packaging. Wooden crates offer protection from impact and vibration during shipping and can be stacked on top of each other.

Freight rates in different countries will be different, we have our own cooperative logistics (DHL/FEDEX/TNT) sea freight / air freight to guarantee your loqistics. You can also choose your own freight forwarder. Shipping is free to addresses within China.

Tip: When you receive the goods, please do not rush to sign. It is best to checkthe goods out of the box, and confirm that there are no problems with the goods.If the product is damaged, please refuse to sign and contact us in time.

Delivery Time

Shipping Methods	DHL	UPS	FedEx	USPS	Air	Ocean
Delivery Time (Day)	3-4	4-5	4-5	10-20	7-10	25-30

Order Tracking

‎17TRACK is an all-in-one global package tracking platform. Easily track couriers like UPS, FedEx, DHL Express, Yamato. Just enter your tracking number to get real-time updates and ensure your packages are delivered securely. Here is the tracking link https://www.17track.net/en

Warranty

30-Day Satisfaction Guarantee on All Products

All new products you purchase from FUNTEK come with a satisfaction guarantee. If any product fails to meet your reasonable expectations, it may be returned for replacement or refund less shipping charges. Products must be returned in their original packaging within 30 days. Return labels will require you to return the product at your own expense. If you return a defective, damaged or incorrect product, you will not be eligible for a refund. Items may take up to 30 days to arrive after return. Please contact us for a return address. The refund amount will be shown in your account within 3-5 business days after the item is received at our warehouse.

1-Year Limited Warranty on NEWYES Products

FUNTEK offers a 1-year limited warranty on all products and accessories against manufacturing defects in materials and workmanship under normal consumer use for a period of 1 year from the date of original purchase. During the warranty period, if the product becomes defective and you return it with proper instructions, we will repair or replace your product. The replacement product will be the same model as the product originally purchased; we will make every effort to replace the product with one of the same color. This limited 1-year warranty applies to any repairs, replacement parts or replacement products for the remainder of the original warranty period.

1. Why choose FUNTEK?

1).Established in 2009. 15 years reliable supplier in Shenzhen, China. 2).Top solution supplier with professional R&D team. 3).Create private model with low cost 4).One-stop customization as per demand 5).Competitive prices directly from factory. 6).100% 5 times endurance testing. 7).7*24 Hrs non-stop working support 8).Prompt response, On time delivery, Good after sales policy.

2. Are you a factory or trading company ? What is the MOQ?

We are factory supplier and have some items in stock, you can order 1pcs for testing before bulk order.

3. Could you provide OEM&ODM service?

Yes, we have engineer team for hardware,software,mechanical, testing. All our screens can customize as per customer's demand.

4. How to order?

1).Tell us products demand, quantity, color and other special requirements. 2).Engineer team will evaluate and provide proposal. 2).Proforma Invoice will be made and send for your approval. 3).Productions will be arranged upon receipt of your approval and payment or deposit. 4).Goods will be delivered as stated on the proforma invoice.

5. How do you guarantee the quality?

First FUNTEK has multiple tests from material purchasing to finished products by different departments, like QA, QC, Sales team to guarantee all products are in perfect condition before shipment. All products need to complete 72-hour aging test to ensure no problem. We also accept the inspection by the third party you appointed. Secondly, our products comply with ISO9001 quality system and CE/FCC/ROHS standards.

6. How do you arrange transportation?

If small sample orders we suggest express delivery (7-10 days) or air freight (10-15 days), if bulk production advise by sea more favorable. Please consult customer service for more details!
